Non-Return Valve

MODERN Dual Plate Non Return / Check Valve ( 80 - 1200 NB)

Choice of springs (rigid and mild) dictate the speed of door closure and the minimum flow velocity at which doors open.  Compact, low priced, calls for replacement of spring set from time to time.  Both flanged and wafer designs as per API 594, PN 10/ PN 16 are available.







Size

80

100

125

150

200

250

LOF

57

64

70

76

95

108


Size

300

350

400

450

500

600

LOF

143

184

191

203

213

222



Size

700

750

800

900

1000

1200

LOF

305

305

356

368

432

524


Sr no.

Component

Material

1

Body

C.I / D.I / Cast Steel

2

Door

D.I / Cast Steel /St. Steel.

3

Door Face

Bronze /St. Steel/Rubber

4

Retainer Bar

Stainless Steel

5

Spring

Stainless Steel


Seat  - Rubber to metal ; metal to metal

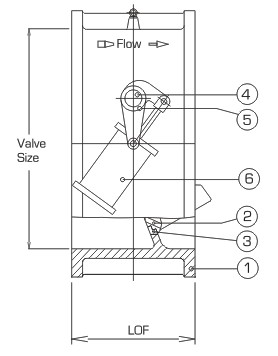

MODERN Single Door Check / Non Return Valve

The large girth around the flow passage, slanted seat, disposition of extra mass on door to impart quick closing characteristics, ensure relatively quieter door closure on pump trip.  Can be tailor-made for arduous duty or vertical application.

Size

80

100

125

150

200

250

LOF

203

241

292

330

495

622


Size

300

350

400

450

500

600

LOF

698

787

914

978

978

1295


Sr No.

Component

Material

1

Body

C.I / D.I

2

Cover

C.I / D.I

3

Door

C.I / D.I

4

Door Face Ring

Bronze / St  Steel.

5

Body Seat Ring

Bronze / St  Steel.


Seat -  Metal to metal
Standard -  IS 5312, Part I: BS 5164
Rating -  PN 10, PN 16
Optional -  Bypass arrangement, other trim material.


MODERN Slanted Seat Non Return / Check Valve (450 - 800 NB)

Essentially a double flanged butterfly type of long body with a high degree of eccentricity between the trunnion and the valve center line, a generously proportioned inclined metal seat in body and an accurately profiled metal face / elastomer seal in disc, ensure leak tight closure. A counter weight & lever and /or a dampening arrangement may be required (optional) depending upon the duty.


Sr No. Component Material

1

Body

D.I

2

Disc

D.I

3

Disc Seat Ring

Integral Ni alloy /Bronze

4

Trunnion

 St     St.

5

Bearing bush

Bronze

6

Damping arrangement

Optional


Size

450

500

600

700

800

LOF

330

350

390

430

470


Rating : PN 10, PN 16, PN 25 (On Request)

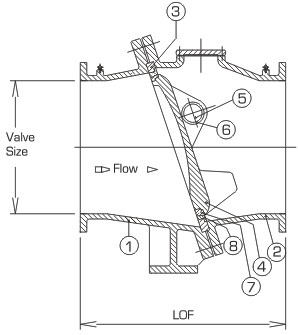

I Tilting Disc Non Return / Check Valve (600 - 2000 NB)

An Aerofoil like door ensures minimal drag and a high lift with increased flow velocities (up to 5 m/s) and on pump trip, closure of door before the water column can recede. The inclined metal seat (almost 30°), a generously proportioned, profiled face ring on door ensures drop tight closure.

Rating  :     PN 6, PN 10, PN 16 (on request)
Optional : Choice of trim and bypass arrangement

Size

600

700

750

800

900

1000

1200

LOF

1016

1106

1200

1200

1360

1450

1730


Sr. No.

Component

Material

1

Inlet shell

C.I / D.I

2

Outlet shell

C.I / D.I

3

Diaphragm

D.I

4

Disc

D.I

5

Trunnion

St. St

6

Bearing bush

Bronze

7

Disc ring

Bronze

8

Diaphragm ring

Bronze

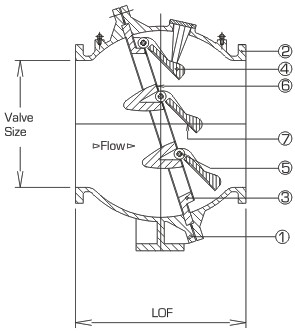

MODERN Multi Door Non Return / Check Valve (600 - 1500 NB)


Before the heavy column of retarding water does the damage, MODERN’s multidoor Recoil check valve acts on its own.  Durable & slam proof.  Only MODERN offers multidoor design that embodies the outstanding non-slam closure characteristics, a design that is proven in over a hundred installations all over the country. These are ideally suited where frequent surges are expected. Almost little or no maintenance is called for in MODERN multi door check valves.

MODERN 1500mm multi door check valve with bypass










Standard – IS 5312 (Part II)
Pressure Rating – PN 6, PN 10, PN 16 (on request)
Optional - Choice of trim material and bypass arrangement













Size

600

700

750

800

900

1000

1200

1500

LOF

914

1000

1045

1118

1250

1396

1500

1981




Check Valve Component

Material

1

Inlet shell

C.I / D.I /Cast Steel

2

Outlet shell

C.I / D.I/Cast Steel

3

Diaphragm

C.I / D.I /Cast  Steel

4

Door

C.I / D.I /Cast Steel

5

Stub pin & nut

St. St.

6

Diaphragm seat  ring

Bronze/St. St.

7

Door face Ring

Bronze/St. St.


NOTE: Consult us for larger sizes, higher pressures, special trim material for all Non Return Valves.



MODERN Check / Non Return / Reflux Valves

We can help select the right valve that will be good value for money.

Characteristics of Check valve

  • Robust and reliable
  • Long Life
  • Low maintenance
  • Choice of material and trim
  • Solution for every pumping application


Non Return Valve Swing type

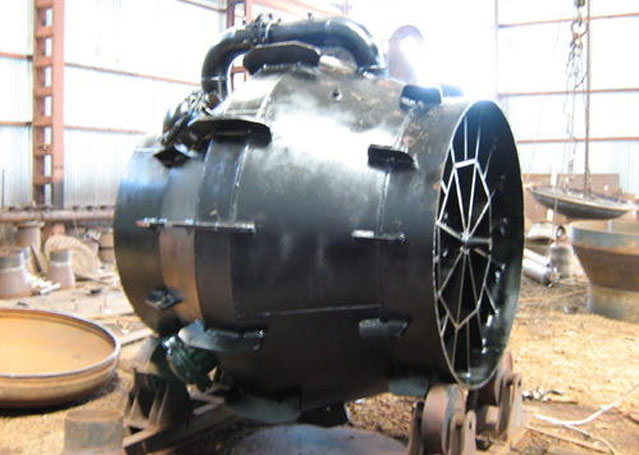

Zero Velocity

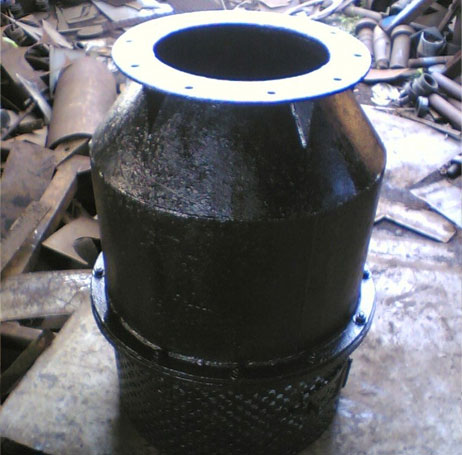

Foot valve




Flap valve
